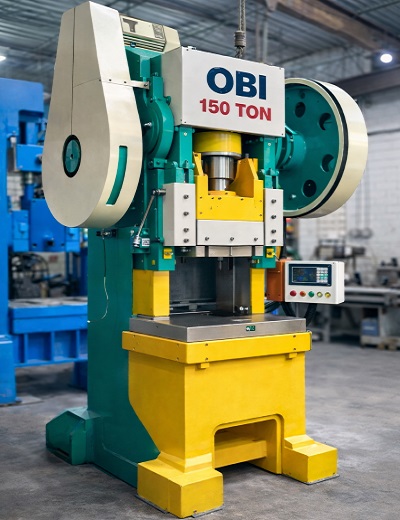

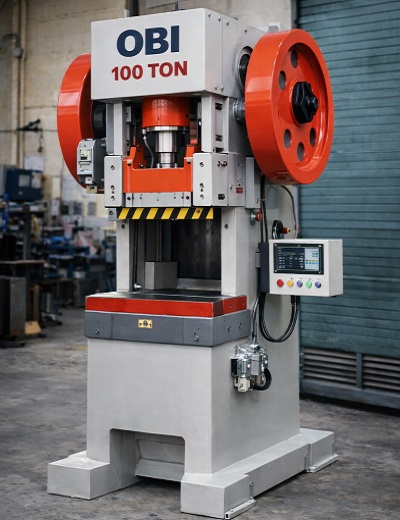

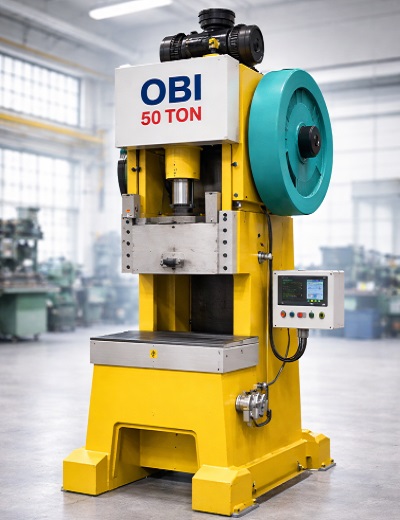

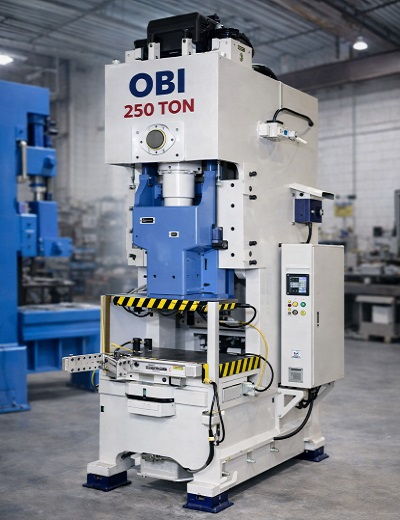

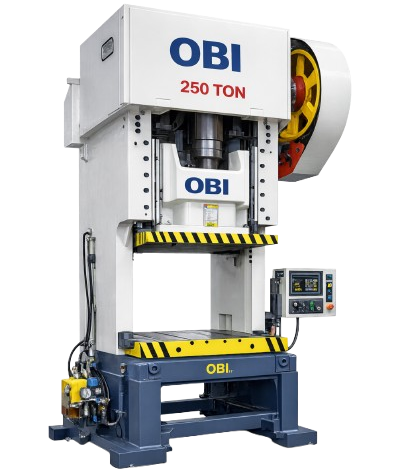

Power Press
Heavy-Duty Solutions for Industrial Operations Request A Quote →
Product Overview
Power press machines are high-performance industrial systems designed to shape, cut, form, and assemble metal and other materials with precision and efficiency. Widely used across manufacturing sectors, these machines deliver consistent force and repeatable results for both light-duty and heavy-duty applications.
Available in pneumatic and hydraulic variants, power press machines are engineered to meet diverse production requirements—from high-speed operations to applications demanding controlled force and accuracy.
Key features
- Robust Heavy-Duty Frame
- Wide Capacity Range (10–250 Ton)
- High Precision & Consistent Performance
- Customizable Configurations
Technical Specificaions
| Model No. | 10 TON | 16 TON | 25 TON | 40 TON | 50 TON | 63 TON | 80 TON | 100 TON | 125 TON | 150 TON | 200 TON | 250 TON |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Capacity (Ton) | 10 | 16 | 25 | 40 | 50 | 63 | 80 | 100 | 125 | 150 | 200 | 250 |
| Stroke Fixed (mm) | 40 | 50 | 63 | 80 | 90 | 100 | 125 | 125 | 125 | 160 | 180 | 160 |
| Stroke Adjustable (mm) | 8-40 | 8-50 | 8-63 | 8-80 | 8-90 | 8-100 | 8-125 | 8-125 | 8-125 | 8-160 | 8-180 | 8-160 |
| Throat (mm) | 160 | 180 | 200 | 224 | 235 | 250 | 280 | 280 | 300 | 325 | 355 | 355 |
| Shut Height Standard (mm) | 200 | 224 | 250 | 280 | 300 | 315 | 355 | 355 | 375 | 400 | 500 | 500 |
| Shut Height Medium (mm) | 250 | 280 | 315 | 355 | 355 | 400 | 450 | 450 | 500 | 550 | 600 | 600 |
| Shut Height High (mm) | 315 | 355 | 400 | 450 | 450 | 500 | 560 | 560 | 560 | 600 | 600 | 600 |
| Side Adjustment (mm) | 50 | 50 | 50 | 63 | 63 | 80 | 80 | 80 | 80 | 80 | 100 | 100 |
| Slide Face (mm) | 180x280 | 200x315 | 224x355 | 250x400 | 250x400 | 280x450 | 315x500 | 315x500 | 350x550 | 400x600 | 400x600 | 400x600 |
| Slide Opening (mm) | 32x60 | 40x75 | 40x75 | 50x85 | 50x85 | 50x85 | 50x85 | 50x85 | 50x85 | 70x85 | 70x85 | 70x85 |
| Clear Distance (mm) | 275 | 300 | 330 | 365 | 370 | 400 | 465 | 465 | 500 | 525 | 550 | 600 |
| Table Height (mm) | 800 | 800 | 800 | 800 | 800 | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
| Table Size (mm) | 315x500 | 355x560 | 400x630 | 450x710 | 475x750 | 500x800 | 560x900 | 560x900 | 600x900 | 650x1000 | 710x1120 | 710x1120 |
| Opening in Table (mm) | 160x220 | 180x224 | 200x250 | 225x280 | 225x280 | 250x315 | 280x355 | 280x355 | 280x355 | 300x375 | 350x400 | 350x400 |
| Bolster Thickness (mm) | 65 | 70 | 75 | 80 | 80 | 85 | 100 | 100 | 110 | 120 | 150 | 150 |
| Strokes per Minute Ungered | 140 | 125 | 112 | 100 | 100 | 90 | 80 | 80 | 40 | 35 | 30 | 30 |
| Strokes per Minute Geared | 70 | 63 | 56 | 50 | 50 | 45 | 40 | 40 | 40 | 35 | 30 | 30 |
| Motor kW @ 1500 RPM | 0.75 | 1.5 | 2.2 | 3.7 | 3.7 | 5.5 | 7.5 | 7.5 | 11 | 11 | 15 | 18.5 |
| Weight Ungered (kg) | 800 | 1300 | 2200 | 4100 | 4250 | 5600 | 7500 | 8200 | 9500 | 11000 | 15500 | 17500 |
| Weight Geared (kg) | 1000 | 1625 | 2500 | 4500 | 4800 | 6200 | 8200 | 8800 | 11000 | 15500 | 17500 | 17500 |
Looking for Power Press tailored to your application?
Contact Us with you requirements for technical discussion & quotation
